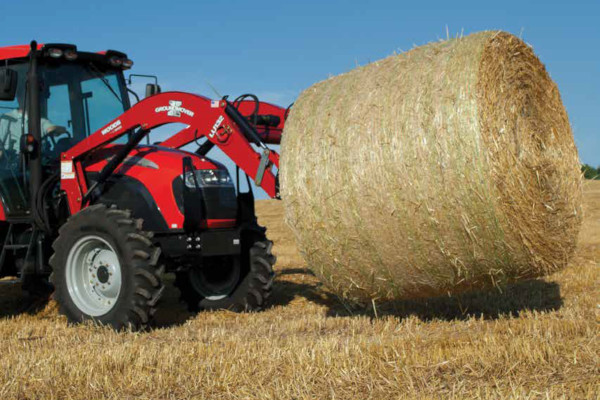

Woods LU126

Double tap to zoom



Features

  • Tractor HP range: 45-90 hp
  • 126-inch maximum lift height
  • Commercial grade bucket with round-back bucket for even material flow
  • Four-bar bucket linkage maximizes bucket roll back and dump angles
  • Mid-attaching loader boom for greater visibility and tire clearance, greater turning flexibility and shorter turn radius
  • Can be painted to match most tractor brands

Specifications

Recommended tractor horsepower 45-90 hp
Bucket widths 72", 84"
Bucket rated capacity c.c. ft. (66" / 72") 17.7 / 20.8
Working width 5"
Maximum lift height 126"
Clearance under bucket 101"
Reach at maximum height 25"
Bucket roll back angle 35°
Bucket dump angle 50°
Tested hydraulic PSI 2,750 psi
Lift capacity at bucket pin 3,000 lbs
Breakout at bucket pin 4,650 lbs
Lift capacity at 19.7" ahead of bucket pins 1,970 lbs
Breakout at 19.7" ahead of bucket pins 3,650 lbs
Pivot pins diameter 1.25"
Lift cylinder diameter 2.48
Bucket cylinder diameter 2.76"
